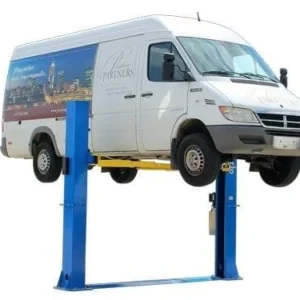

10,000 lb Capacity Commercial Grade BasePlate Lift

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.


10,000 lb. Capacity
Commercial Grade
Baseplate, Open-Top Style Lift
Overall Height: 111 7/8″ (9′ 3 7/8″)
Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
Super-Symmetric Arms

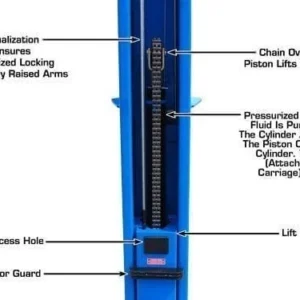

Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
Welded Support Gussets Increase Column Strength.
Automatic Arm Restraints
Powder Coat Finish
Free 12 Piece Truck Adapter Set
Shipping Weight: 1,640 LBS.
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Atlas® ATTD-BP10000X Specifications

Capacity
10,000 LB.

Overall Height
111 7/8″ (9’ 3 7/8″)

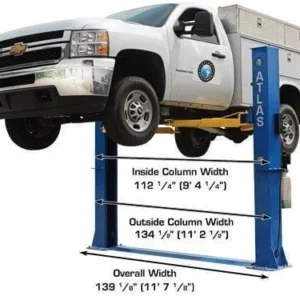

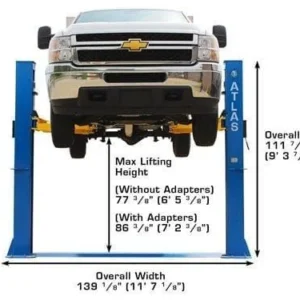

Overall Floor Width
139 1/8″ (11’ 7 1/8″)

Outside Column to Outside Column
134 1/2″ (11’ 2 1/2″)

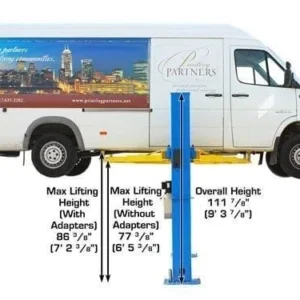

Maximum Lift Height (Without Adapters)
77 3/8″

Maximum Lift Height (With Adapters)
86 3/8″

Minimum Arm Height
4″

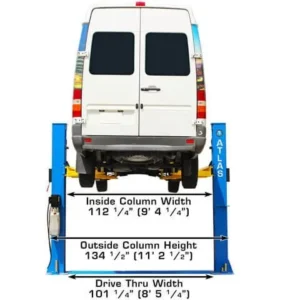

Inside Column
112 1/4” (9’ 4 1/4”)

Drive Thru
101 1/4” (8’ 5 1/4”)

Column Size
9 1/2″ x 11″

Column Thickness of Steel
6mm

Base Of Lift
17 1/2″ x 21 1/2″

Motor/Electrical Requirement
220 volt single (1) phase.

A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
1,640 LBS.

Adapter Heights
4 Each 2”, 3”, 6”

Arm Hole/Adapter Peg Size
1.5”

Requires a minimum of 4″ of concrete with a 3000 psi. rating

WEIGHT
1640 lbs

BRAND
Atlas
