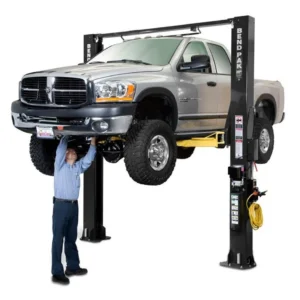

Bendpak Dual-width, 10,000 lb capacity, Clearfloor

The safe and rugged XPR-10S-168 two-post lift features extended height columns for added overhead clearance and an adjustable top beam to accommodate wide or narrow installation set-ups. The adjustable width design allows you to choose the best setting for your specific space or vehicle lifting requirements. The highly sophisticated yet simple and dependable XPR-Series design requires very little service or maintenance for an overall lower cost of ownership. All BendPak’s XPR two-post models feature dual “direct-drive” low-pressure cylinders, maintenance free UHMW load bearings, single-piece columns, extra-tall lifting carriages and triple-telescoping arm configurations for increased arm positioning versatility.

10,000-lb lifting capacity
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
Bolt-on 24″ column extensions provide added overhead clearance
Expandable top beam accommodates wide or narrow configurations
Padded overhead safety shutoff bar
Single-piece columns
Drop-end arms provide a lower pad height
Dual hydraulic direct-drive cylinders
Oversized 53″ tall carriage for superior strength and durability
Electric / hydraulic power system
Large, 17″ x 19″ A36 steel base plate
Self-lubricating dura-glide UHMW polyethylene bearing system
Single-point safety release
Safety locks in each column spaced every 3″
Automatic arm restraints
Heavy-duty 1/2″ aircraft-quality equalizer cables
Oversized cable sheave diameter reduces cable fatigue
4-piece 63 mm stackable adapter set comes standard
Triple-telescoping arms
Versatile drop-in contact pads with stackable adapters
​ALI Approved.

MODEL
XPR-10S-168

Lifting Capacity*
10,000 Lbs. / 4,536 kg.

*Max Capacity / Front Axle
5,000 Lbs. / 2,268 kg.

*Max Capacity / Rear Axle
5,000 Lbs. / 2,268 kg.

A – Height Overall:
169″ / 4,293 mm.*

B – Width Overall: (NARROW)
132″ / 3,353 mm.

B – Width Overall: (WIDE)
145″ / 3,683 mm.

C – Width Outside of Columns: (NARROW)
126-3/4″ / 3,225 mm.

C – Width Outside of Columns: (WIDE)
139-3/4″ / 3,555 mm.

D – Floor To Overhead Switch:
165″ / 4,191 mm.*

E – Inside Columns: (NARROW)
105.5″ / 2,680 mm.

E – Inside Columns: (WIDE)
118.5″ / 3,010 mm.

F – Reach (Front Arm Min.):
27-1/2″ / 698 mm.

G – Reach (Front Arm Max.):
51-1/2″ / 1,308 mm.

H – Reach (Rear Arm Min.):
34″ / 863 mm.

I – Reach (Rear Arm Max.):
54-1/2″ / 1,384 mm.

J – Min. Pad Height:
4.25″ – 6-3/4” / 108 mm. – 171 mm.

K – Rise:
69″ / 1,753 mm.

L – Max Lift Height (Pad Only):
73″ – 75″ / 1,854 – 1,905 mm.

M – Max Lift Height (3″ Adapter):
75.5″ – 77.5″ / 1,917 mm. – 1,968 mm.

N – Drive-Thru Clearance: (NARROW)
93″ / 2,362 mm.

N – Drive-Thru Clearance: (WIDE)
106″ / 2,692 mm.

Screw Pad Adjustment:
2″ / 51 mm.

Motor (**)
220 VAC / 60 Hz. 1Ph.

Time of full Rise:
45 Seconds

Max Load Per Arm:
2,500 Lbs. / 1134 Kg.
