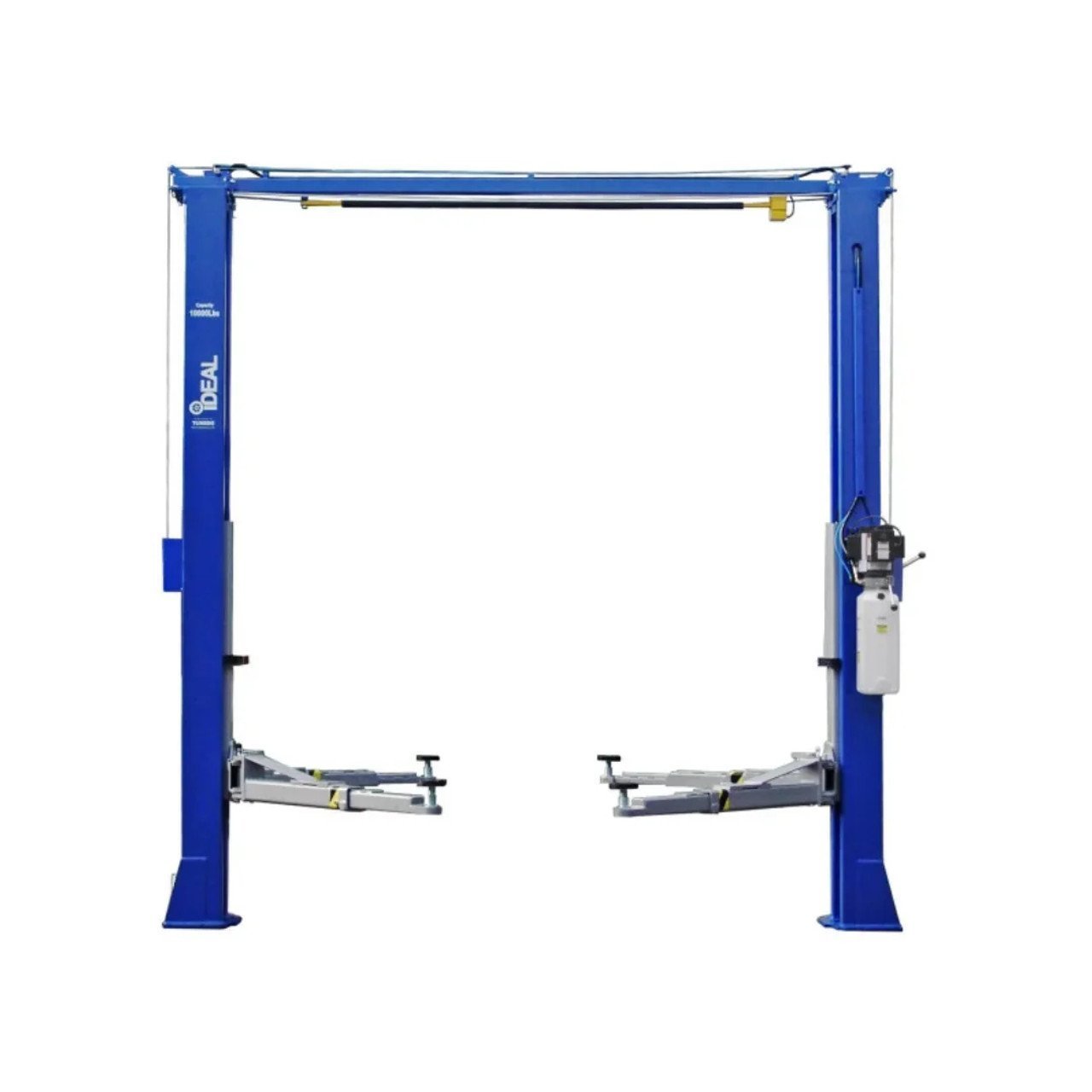

iDEAL TP10KAC-DX 10,000 Lb Two Post Clear Floor BI-symmetrical Lift – Ali Certified

iDEAL TP10KAC-DX 10,000 Lb 2 Post Lift – Ali Certified Clear Floor BI-symmetrical

Get your 10000 lb 2 post lift for light duty vehicles with an ALI certification. This lift, with a Bi-symmetric design, features a unique design with 3 front 3-stage arms and 180 degree rotation. Allows a single point lock release, combining direct drive cylinders, makes this lift the perfect choice for workshops or garages, if you want to take this lift, buy now and receive it where you want, remember that we are the best mechanic tools store.

Features
10000 pound 2 post car lift

Ali Certified

Bi-Symmetric Arm Design

Rubber Door Guards

3 Stage Front Arms

Direct Drive Pull Cylinders

Single Point Lock Release

Spin Up Low Profile Lift Pads

Stackable Adapters Included

External Hose Guards

Duro Certified Power Unit

Met, Ul, Csa Listed
Specifications
 Lift Model

 TP10KAC-DX
 Capacity

 10,000 lbs.
 Height Overall

 144″
 Width Overall w/ Power Unit

 145-1/2″
 Max Lift Height

 71″
 Width Between Columns

 116″
 Min. Pad Height

 4″
 Drive Thru Clearance

 104″
 Lifting Speed

  50S
 Asymmetric / Symmetric

 Bi-Symmetric
 Clear Floor / Floor Plate

 Clear Floor
 Short Arm Reach – min/max

 23″-45″
  Long Arm Reach – min/max

 41″-59″
 Narrow Bay Setting

 NA
 Max Load Per Arm

 2,500 lbs
 Ship Weight

 1,705 lbs
 Power

 220V – 20 AMP – 1 PH
