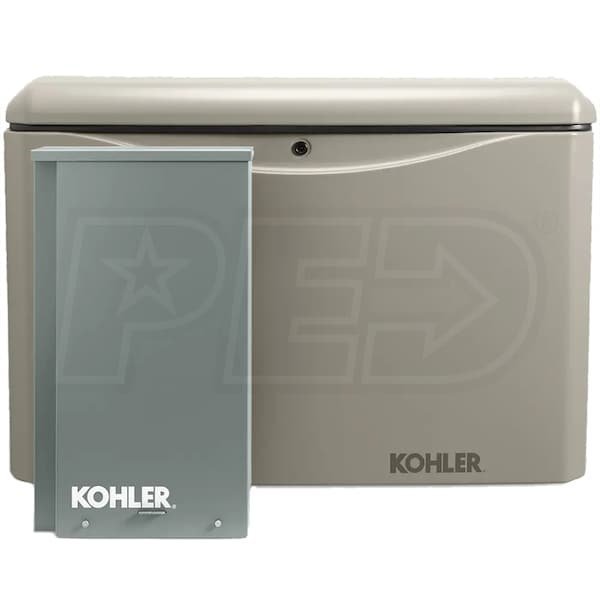

Kohler 20RCAL-200SELS 20kW Aluminum Standby Generator System (200A Service Disc. w/ Load Shedding)

20kW (LPG) / 18kW (NG) Air-Cooled Standby Generator

Fully Automatic Operation – Includes Automatic Transfer Switch

Premium 5-Year / 2000 Hour Limited Warranty

Backed by Kohler’s extraordinary reliability & performance

RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch

NEMA 3R Enclosure mounts between meter & main service panel

Built-In Load Shed – Manage (2) HVAC + (4) Non-Essential loads***

Kohler Command PRO® OHV Engine

Meets emission regulations for U.S. EPA & California

Powerful and reliable engine with hydraulic valve lifters

New 100% Corrosion-Proof Aluminum Enclosure

Aluminum base can be mounted on gravel or cement pad

Meets 181 MPH wind rating; Impact-resistant down to -30° F

Powerful Performance w/ PowerBoost™ Technology

Greater motor-starting ability for large electrical loads

Premium Power Quality (+/-1% Voltage Regulation)

Protects sophisticated electronics with low distortion (<5%THD) Fast Response Time Kohler™ generators restore power in as little as 10 seconds New Silencer Reduces Sound Levels & Provides Quiet Operation Maintains neighborhood solitude – approx 69 dB(A) at 7 m (23 ft) RDC2 (6-Button) Digital Controller Glare-resistant, 2-line 16-character display – No More Codes ATS status via LED lights on controller; Built-In 2.5A Battery Charger Real time clock allows you to easily set weekly exercise Remote Monitoring System (Included) Built-in Ethernet card, no hardware needed Requires OnCue Plus Wireless Radio Kit For Wireless Monitoring (Sold Separately) KOHLER® Energy Management App Get real-time alerts on generator status, remote control & maintenance records Easier Installation Streamline design reduces time required to install generator Installation Flexibility* Can be installed within 18″ of a building / home *Always check local building codes General Information Product Category Generator – Standby Overview Product Category Generator – Standby Weight 555 Pounds Made in USA Yes Consumer Warranty 5 Years Commercial Warranty 5 Years Product Style Standby Generator Product Length 47 Inches Product Width 26.2 Inches Product Height 32.2 Inches UPC 650531447500 Product Specs Voltage 120/240 Single-Phase Frequency 60 Hertz Rated Watts 20000 Watts Fuel Type LP/Natural Gas NG Power Capacity 18000 Watts LP Power Capacity 20000 Watts NG Fuel Consumption @ 50% Load 161 ft³/hr NG Fuel Consumption @ 100% Load 281 ft³/hr LP Fuel Consumption @ 50% Load 2.3 gallons/hr LP Fuel Consumption @ 100% Load 3.9 gallons/hr Rated Amps 83 Amps Decibel Rating @ 7m  69 Run (64 Test) dbA Transfer Switch Automatic (Included) Transfer Switch Amperage 200-Amps Battery Not Included (500 CCA) Enclosure Aluminum A/C Ton Rating 2 x 5-Tons Transfer Switch Style Service Disconnect ATS Load Prioritizing Built-In ATS Load Shedding Built-In ATS Service Disconnect Yes Cooling System Air Cooled UL Listed Yes Grade Type Emergency Wi-Fi Remote Monitoring Sold Separately Engine Engine Brand Kohler Starting System 12v Auto Start CC 999 CC Consumer Engine Warranty 5 Years Commercial Engine Warranty 5 Years Engine RPM 3600 RPM Low Oil Alert/Shutdown Yes
