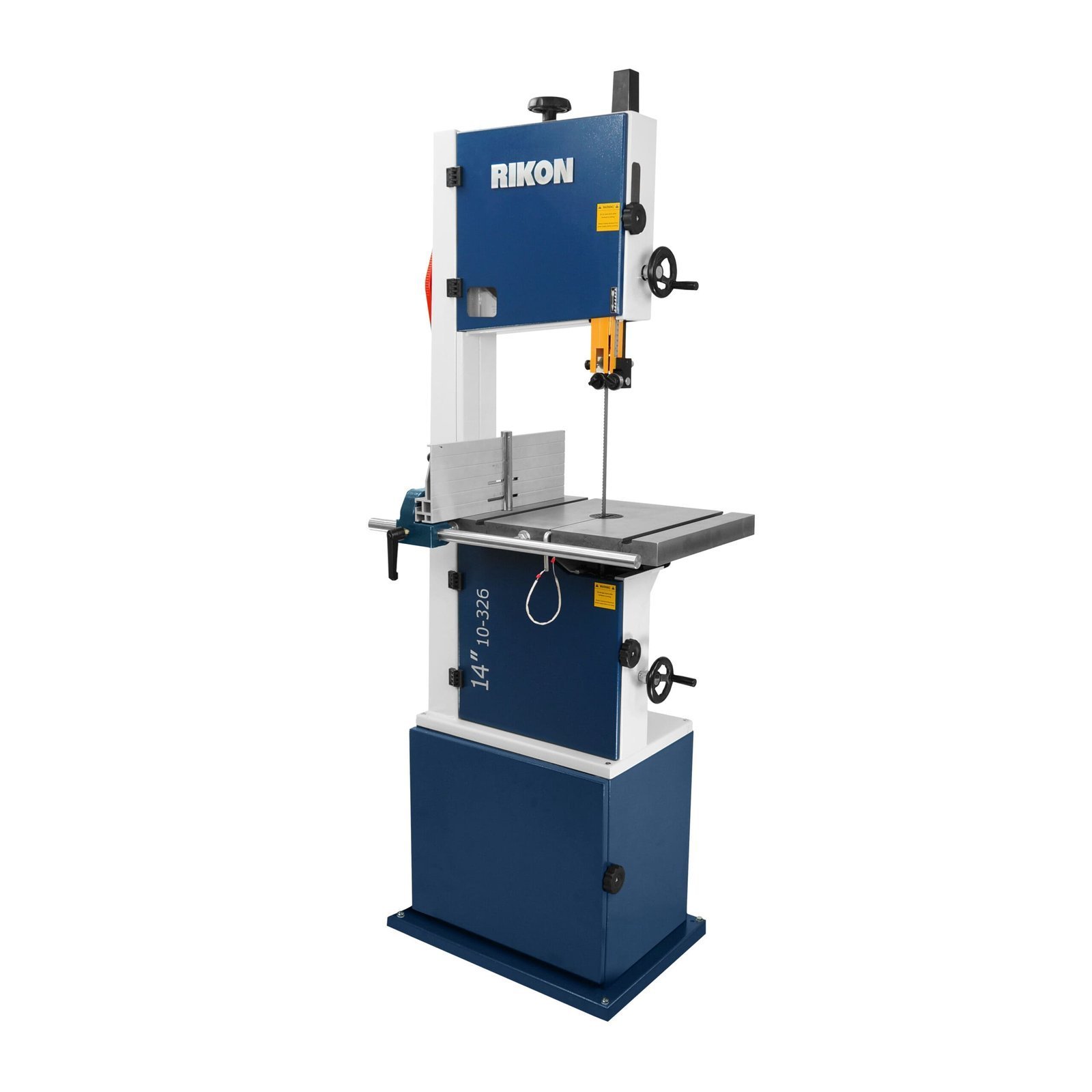

Model 10-326: 14″ Deluxe Bandsaw
Original price was: $249.00.$166.00Current price is: $166.00.
Guaranteed Safe Checkout
13″ Cutting Capacity
• Patented – Spring Loaded Tool-less Guide System
• Patented – Quick Adjust Fence System With 6″ Tall Rip Fence
• Patented – Quick Lock Cast Iron Trunnion System
• 2 Speeds 1,445 / 2,950 FT / MIN.
• Large Cast Iron Table
• Balanced Cast Iron Wheels
14” Bandsaw #10-326 is RIKON’s newest model with many Patented features that professionals will enjoy – including spring-loaded tool-less blade quides, quick-adjust fence system and quick-lock trunnion table
[show_more more=”» Read More” less=”» Read Less” color=”#0f70e8″]angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and storage cabinet base. Its dual voltage, 1-3/4HP motor provides ample power for most every work encountered. Designed with two speed options – just change the drive belt on the pulleys to change from fast to a slower blade speed. Includes 6” tall rip fence with re-saw bar. Wired for use with 3-wire 120V receptacles.Tech Specs
Motor Horsepower
1-3/4 HP TEFC
Motor Amps
14/7
Motor Volts
115/230V, 60Hz, 1Ph
Blade Speed
1,445/2,950 FT/MIN
Cutting Capacity Height
13”
Cutting Capacity Width
13-5/8”
Blade Width
3/16” – 3/4”
Blade Length
111”
Table Size
21-1/2” x 15-3/4”
Table Left Tilt
-7°
Table Right Tilt
45°
Table Miter Gauge “T” Slot
(2) 3/4” x 3/8”
Table Height to Floor
40-1/2”
Table Height to Base
20-7/8”
Table Fence Size
18-3/4” x 1-3/4” x 6”
Wheel Material
Cast Iron
Blade Guide Type
Spring Loaded
Table Trunnion
Cast Iron
Overall Height
74-1/2”
Overall Width
33-3/4”
Overall Depth
25”
Overall Base Size
24” x 17-5/8”
Dust Port
1@4”
Overall Net Weight
285 lbs.
Warranty
5 Years
